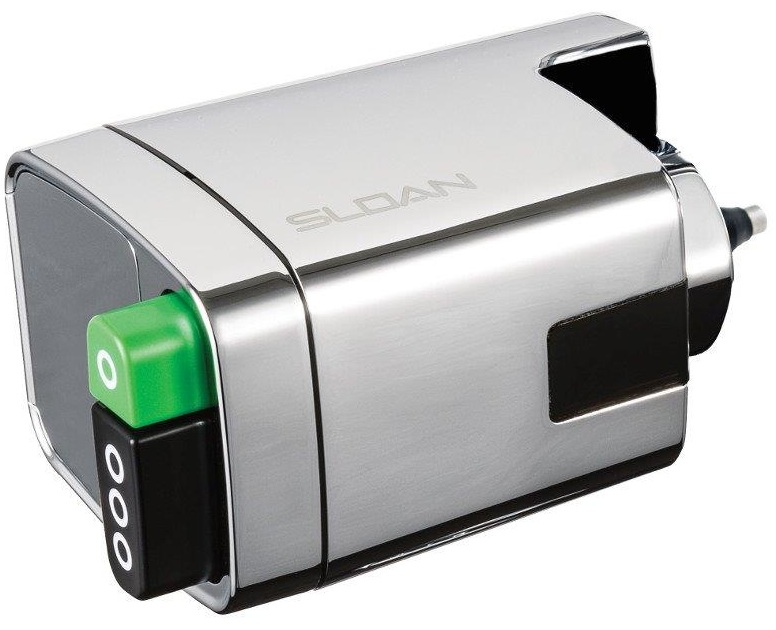

Sloan Dual-Flush EBV-550-A SMO Cat. No. 921S262

Sloan Dual-Flush EBV-550-A SMO Cat. No. 921S262

Battery-Powered, Sensor Activated, Dual Flush Retrofit Conversion Kit for

Exposed Closet Flushometers.

ADA Compliant Infrared Side-Mount Sensor for “No Hands” operation

Chrome Plated Housing Infrared Sensor Housing

Non-Hold Open True Mechanical Override (TMO) Full Flush Button

If the user is present for less than one minute and leaves the sensing zone

or chooses the small GREEN override button,

a reduced flush initiates (1.1gpf/4.2Lpf) eliminating liquid and paper

waste, saving 1/2 gallon of water.

If the user is present for greater than one minute and leaves the zone or

chooses the large BLACK override button,

the full flush initiates (1.6gpf/6.0Lpf) eliminating solid waste and paper

Reduces water volume by 30% when a reduced flush occurs

Initial Set-Up Range Indicator Light (first 10 minutes)

User-friendly three (3) second Flush Delay

Four (4) Size alkaline Batteries included

Low Battery Flashing LED

User in View Flashing LED

Can be installed when handle is on left or right side of valve

Installation Tools provided

The Side-Mount units can be used on standard rough-in Sloan, Royal, Regal,

Crown and Zurn flushometers.
