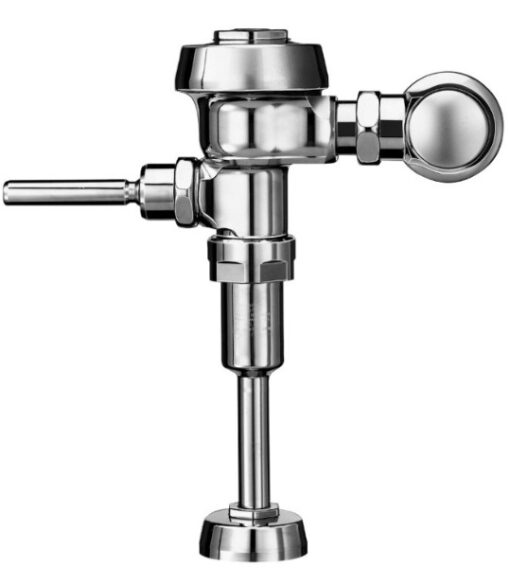

Sloan Royal 186-1 1.0 GPF Urinal Flushometer Cat. No. 921S938

Sloan Royal 186-1 1.0 GPF Urinal Flushometer Cat. No. 921S938

Exposed Urinal Flushometer, for ¾” top spud urinals.

Specifications

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:

PERMEX Synthetic Rubber Diaphragm with Dual Filtered Bypass

ADA Compliant Metal Oscillating Non-Hold Open Handle with Triple Seal Handle Packing

3/4” I.P.S. Screwdriver  Bak-Chek Angle Stop w/free spinning vandal resistant stop cap

High Back Pressure Vacuum Breaker Flush Connection w/One Piece Bottom Hex Coupling Nut

Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/Set Screw

Adjustable Tailpiece

Non-Hold Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation

Spud Coupling and Flange for 3/4” Top Spud

Flush Accuracy Controlled by CID Technology

Diaphragm, Handle packing, Stop Seat and Vacuum Breaker Molded from Permex Rubber Compound for Chloramine Resistance

100% of the energy used in manufacturing is offset w/Renewable Energy Sources-Wind Energy
